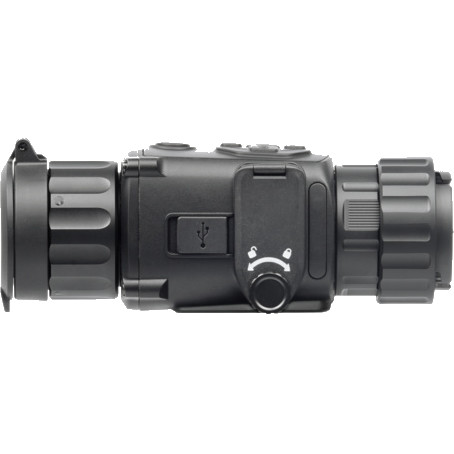

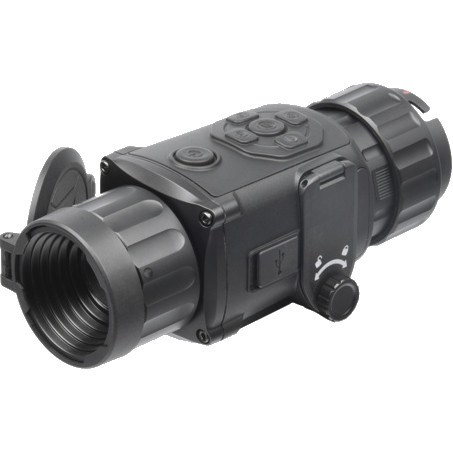

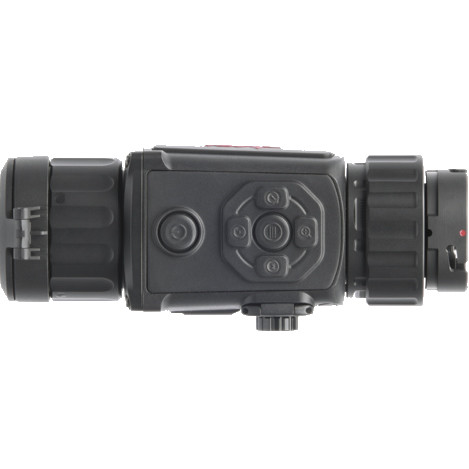

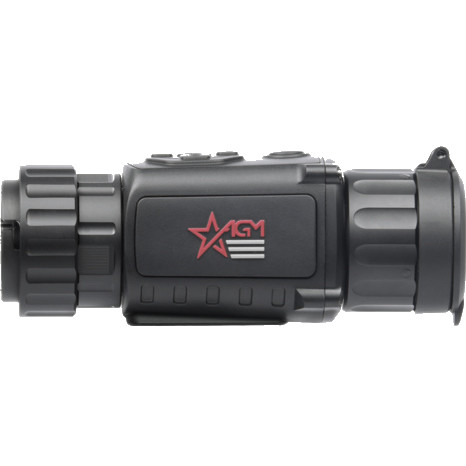

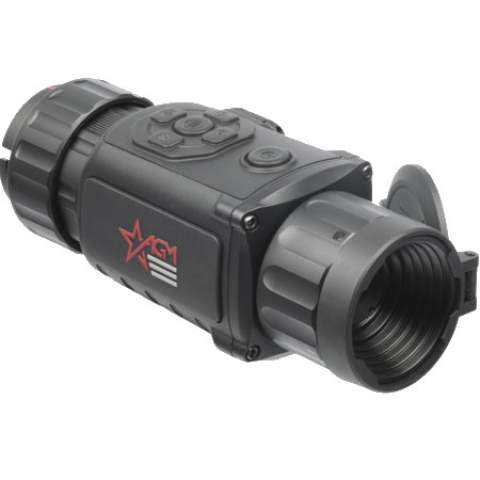

AGM RATTLER TC19-256 THERMAL CLIP-ON SYSTEM
Description
The AGM Rattler TC19-256 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC19-256 has high sensitivity 12μm thermal detector with 256×192 resolution and 1024x768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The product is mainly applied to scenarios such as patrolling, airsoft, etc.
Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
12μm high sensitivity detector
256×192 thermal resolution
1024x768 resolution 0.39-inch OLED display
8x digital zoom
Video recording and snapshot, built-in EMMC (16 GB)
Supports distance measurement
Adjustable color palettes
Wi-Fi data transmission
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
3-Year warranty
PACKAGE INCLUDES:
USB Cable | Lens Tissue | User Manual | Carrying Case | Two Lithium CR123A Batteries | Universal Front Scope adapter mount | AGM Cup
Technical Data
| Detector Type | 12 μm VOx Uncooled Focal Plane Arrays |
| Resolution | 256 × 192 |
| Refresh Rate | Sensor 25 Hz / OLED 50 Hz |
| Response Waveband | 8 μm to 14 μm |
| Lens System | 19 mm, F1.0 |
| Field of View (HxV) | 9.2° × 6.9° |
| Magnification | 1x |
| Diopter Adjustement | -5 to +3 dpt |
| Exit Pupil | 22 mm |
| Observation Distance | 950 m |
| Monitor | 1024×768, 0.39 inch, OLED |
| Uniformity Correction (Flat Field Correction) | Auto, Manual, External Correction |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Highest Temperature Spot Tracking | Yes |
| Scene Mode | Jungle, Recognition |
| Distance Measurement | Yes (Stadiometric Rangefinder) |
| Highest Temperature Spot Tracking | Yes |
| Standby Mode | Yes |
| Built-in Storage | 16 GB EMMC |
| Record Video | On-board video recording |
| Capture Snapshot | Yes |
| CVBS Output | Yes (via USB) |
| Battery Type | Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries |
| Battery Operating Time | Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on) |
| Battery Capacity Display | Yes |
| Power | 5 VDC/2 A, USB Type-C interface Supports external power supply |
| Working Temperature | -20°C to 55°C (-4°F to 131°F) |
| Protection Level | IP67 |
| Shock and Vibration | 750 g/ms |

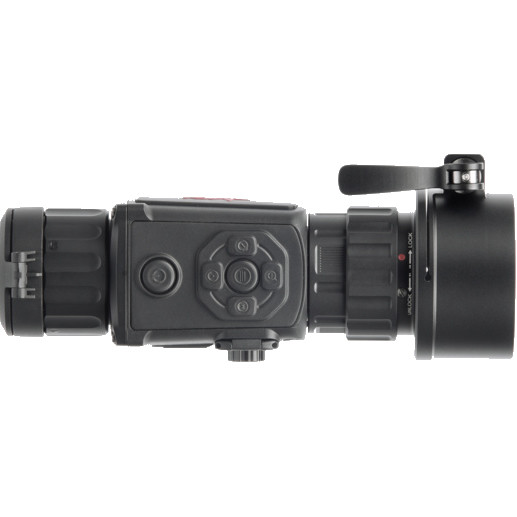

| Mounting | Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/Weaver rail |
| Dimension | 153 mm × 62 mm × 59 mm (6.0 × 2.4 × 2.3 in) |
| Weight (w/o batteries) | 0.41 kg (0.92 lb) |
