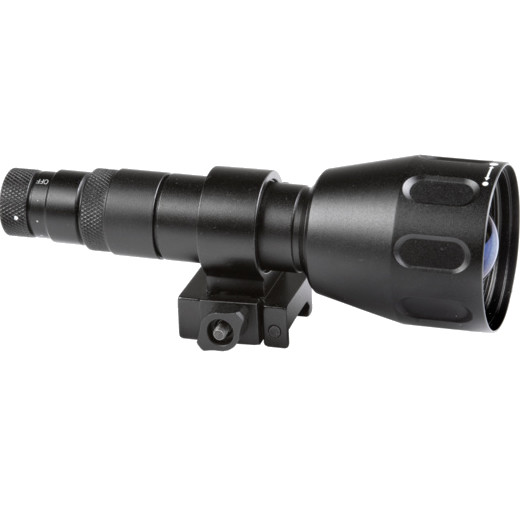

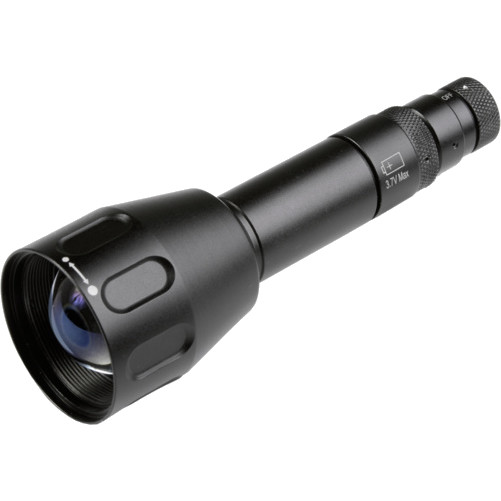

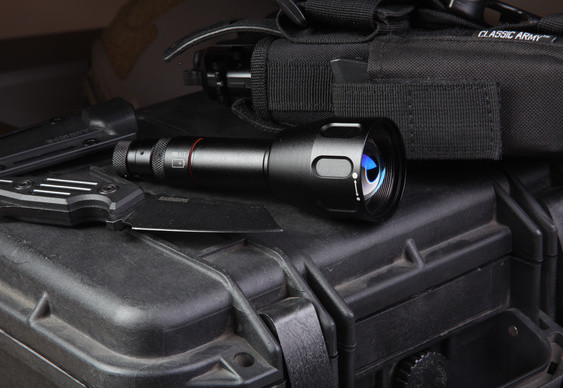

AGM SIOUX 940 LONG-RANGE IR ILLUMINATOR
Description
The AGM Sioux extra long-range infrared illuminators provide advanced image-intensified viewing capabilities to night vision devices, and is ideally suited for operations in little to no ambient light.
The illuminator features adjustments for field of view divergence and output power, extending the capabilities of night vision device. One of the market’s most powerful infrared illuminators, the AGM Sioux comes equipped with the 18650 rechargeable battery and charger.
The Sioux line includes the Sioux 850 model with 850nm peak wavelength and Sioux 940 model with 940nm peak wavelength. The 850 nm wavelength is standard for most night vision applications. The 850nm light source does produce a faint red glow at direct exposure, but otherwise it is not visible to the naked eye. The main advantage of the 940nm wavelength is that it is completely invisible.
Powerful, long-range infrared illuminator
High power, IR-emitting diode
Power adjustment
Wide-range beam angle adjustment
Precise adjustment of beam direction
Invisible to the human eye
Eye safe
Lightweight and rugged
Ideal for extreme, low-light conditions
Can be mounted on the Weaver rail or used as a handheld device
Comes standard equipped with a rechargeable battery and charger unit
3-Year warranty
PACKAGE INCLUDES
User Manual | IR Illuminator | Mount | 18650 Rechargeable Battery | Charger | Soft Carrying Case
Technical Data
| Compatible Night Vision Devices | Digital Gen 2 Gen 3 |
| IR Emitter Type | LED |
| Output | 800 mW |
| Peak Wavelength | 940 nm |
| Illumination Range | Up to 600 m |
| Divergence | 4° to 35° Digital |
| Battery Type | Single 18650 (3.7V) Rechargeable Battery Rechargeable Battery |
| Battery Life (Operating at 20°C) | • Up to 10 hours (1/4 Power) • Up to 8 hours (1/2 Power) • Up to 6 hours (3/4 Power) • Up to 2.5 hours (Full Power) |
| Operating Temperature Range | -30 to +50°C (-22 to +122°F) |
| Weight | 225 g (0.49 lb) |
| Size | 153 x 48 x 48 mm (6.0 x 1.8 x 1.8 in) |
| Package Includes | IR Illuminator, Mount, 18650 Rechargeable Battery, Charger, Soft Carrying Case |
